Additional Information
| Name | Xplorer E-bike Urban Bug Green |
|---|---|
| SKU | 7327 |
| Price | € 4.999,00 |
| Special Price | € 3.599,00 |
| Type of bike | City |
| Gender | unisex |
| Brand | Xplorer |
| FRAME | Aluminum, head tube 230mm,inner/outer diameter 44*50/56*62mm,Seat tube 34.9*500mm,chain stay 170mm,R |
| FORK | Aluminum |
| HANDLE BAR | Ø31.8x |
| STEM | ADJUSTABLE STEM, Ø31.8 mmx Ø28.6mmxEX |
| GRIP | TPR,OPEN end,lock on grip 135mm / 135mm |
| REAR DERAILLEUR | SHIMANO REAR DERAILLEUR, RD-M3100, ALIVIO,SGS 9-SPEED, TOP NORMAL, SHADOW DESIGN, DIRECT ATTACHMENT, BULK |
| SHIFTER LEVER-RIGHT | SHIMANO SHIFT LEVER, SL-M3100-R, ALIVIO, RIGHT, 9-SPEED RAPIDFIRE PLUS 2400MM INNER, W/ OPTICAL GEAR DISPLAY, BULK |
| BRAKE LEVER-LEFT | SHIMANO (INCLUDE IN BRAKE) |
| BRAKE LEVER-RIGHT | SHIMANO (INCLUDE IN BRAKE) |
| FRONT BRAKE | SHIMANO DISC BRAKE ASSEMBLED SET/J-kit, BL-MT201(L), BR-MT200(F), BLACK, SM-MA-F180P/S, RESIN PAD(W/O FIN), 1000MM HOSE(SM-BH59-SS BLACK), BULK |
| REAR BRAKE | SHIMANO DISC BRAKE ASSEMBLED SET/J-kit, BL-MT201(R), BR-MT200(R), BLACK, SM-MA-R180P/S, RESIN PAD(W/O FIN), 1750MM HOSE(SM-BH59-SS BLACK), BULK |
| FRONT ROTOR | 180mm |
| REAR ROTOR | 160mm |
| FRONT BRAKE ADAPTER | USING FOR POSTMOUNT CALIPER, POSTMOUNT FORK/FRAME WITH 180MM ROTOR |
| CHAIN RING | 3/32"x46T |
| CRANK ARM | Aluminum,165mm |
| CASSETTE | SHIMANO CASSETTE SPROCKET, CS-HG200-9, 9-SPEED, 11-13-15-17-20-23-26-30-36T(BW), BULK |
| CHAIN | 1/2”x11/128” |
| FRONT HUB | M15*14G*36H*135W |
| REAR HUB | 10 speed ,M10*14G*36H*170W |
| FRONT RIM | Aluminum,24"x14Gx36H, American valve |
| REAR RIM | Aluminum,20"x14Gx36H, American valve |
| FRONT TIRE | 24"x3.0, 76-507,W/Reflector, Black |
| REAR TIRE | 20"x3.0, 76-406,W/Reflector, Black |
| FRONT TUBE | 24"x2.8,American valve,valve length 35L, black |
| REAR TUBE | 20"x2.8/3.0,American valve,valve length 35L, black |
| DRIVE UNIT | Bafang MM G330.250.C,Mid-drive motor,36V250W, speed limit 25km/hr |
| DRIVE UNIT COVER | Plastic, black |
| BATTERY | 36V 17.5Ah,Samsung INR18650-35E 10S5P,Li-Ion Battery Pack, with a charger |
| CYCLE COMPUTER | 36V,5 level of assistance |
| PEDAL | 3 components B/#6^6/ 9/16 /ED black, Siz |
| SEAT POST | Aluminum ,seat clamp diameter 30.9*lengt |
| SADDLE | A299+90R |
| SEAT CLAMP | Aluminum,Ø 34.9mm, quick release |
| FRONT FENDER | Front length 230mm,Total length 650mm,width80mm |
| REAR FENDER | Rear length 320mm,total length 840mm,width 80mm |
| KICKSTAND | Aluminum. Adjustable , size 24"-28" |
| BELL | Aluminum O |
| FRONT LIGHT | 1200 l |
| REAR LIGHT | With Brake light / turn direction light / W/RX-REMOTE |
| Remote control | high low beam control / left and right turn control / dobule blinker control |
| REAR LIGHT ADAPTER | Rear fender adapter for rear light 124mm,black,W/ Φ6mm x5 PCS |
Details

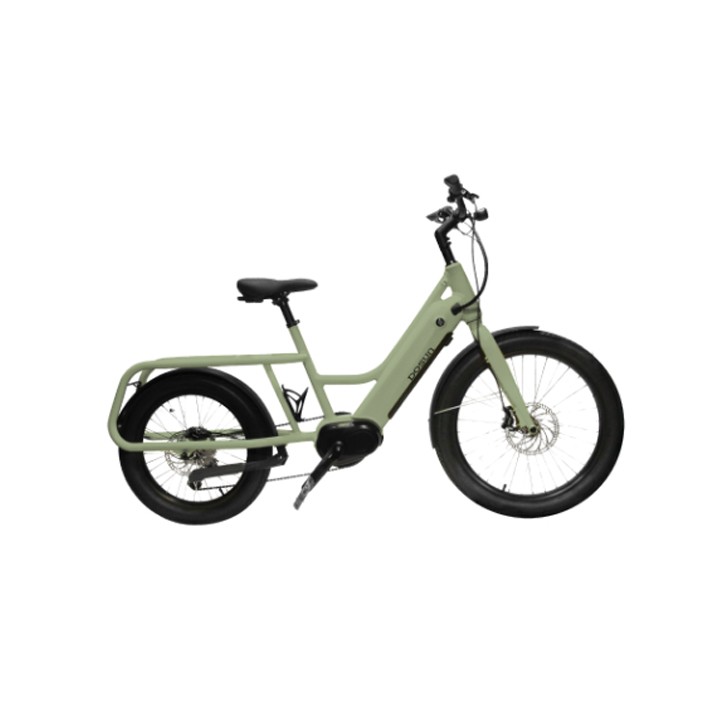

Xplorer E-bike Urban Bug Green
